CADProfi CP-Symbols Mechanical Hydraulics and pneumatics

124,00  100,00  (alv.0%)

CADProfi CP-Symbols Mechanical Hydraulics and pneumatics

Kuvaus

CADProfi CP-Symbols Mechanical Hydraulics and pneumatics

CADProfi CP-Symbols Mechanical Hydraulics and pneumatics

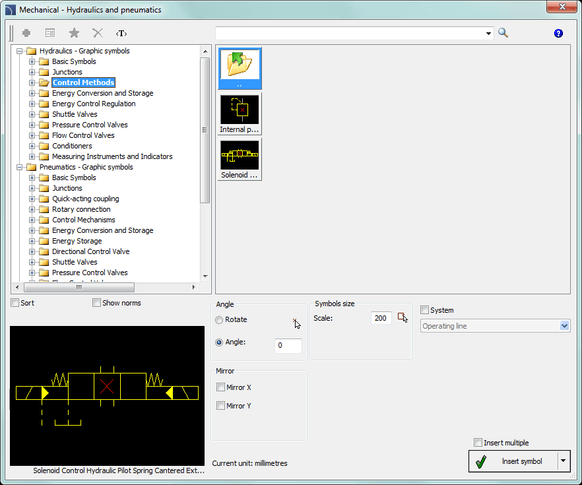

Mechanical – Hydraulics and pneumatics library possesses basic symbols used in drawings of the hydraulic and pneumatic system
schemes.

In the Mechanical – Hydraulics and pneumatics library the following symbols categories can be found:

  • hydraulics – graphic symbols (basic symbols, junctions, control methods, energy conversion and storage, energy control regulation, shuttle valves, pressure control valves, flow control valves, conditioners, measuring instruments and indicators),
  • pneumatics – graphic symbols (basic symbols, junctions, quick-acting couplings, rotary connections, control mechanisms, energy conversion and storage, energy storage, directional control valves, shuttle valves, pressure control valves, flow control valves, conditioners, heat exchangers, measuring instruments and indicators),
  • implementation of mechanism symbols and control methods (overload protection),
  • symbols identifying the direction of circulation, movement and location of flow,
  • systems logical fluids – elements of binary logic (A and B styles),
  • basic symbols,
  • block symbols (e.g. three way of flow, four way of flow).
